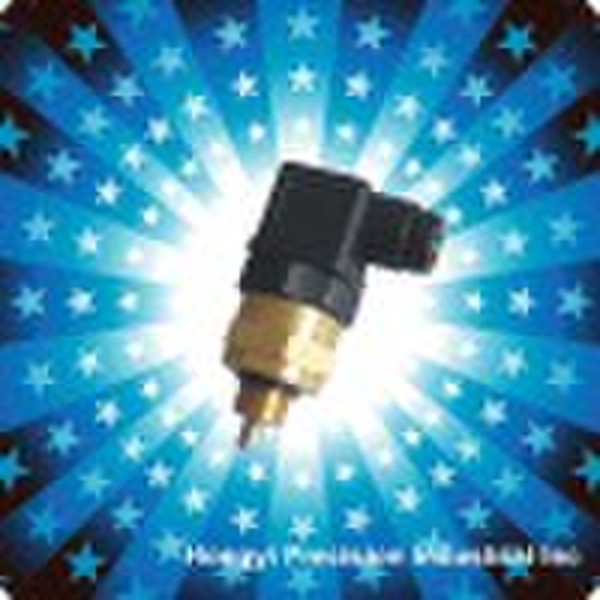

oil pressure sensor for truck

Oil pressure sensor Introduction TP102323001cansimultaneousmeasurepressureandtemperature. Itadpotsdiffusedsiliconceramicsensor,withthermistanceasitssensorcomponent. Ithasfeaturesofgoodstability,greatreliabilityandeasywiring. ItiswidelyappliedtofieldsofProcessControl,HVAC,Automationandautomobileindustries. Specification: Pressuresensor: Pressurerange:0-1.0MPA(diffusedsiliconceramicsensor) Power:5VDC Overloadpressure:1.5Mpa Burstingpressure:2Mpa Responsetime:1ms Compostietolerance:(includeliner,hysteresis,repetitiveness) Zerooutput:0+/-0.2mV/V@25C Fullscaleoutput:200mV/V 1000mV/FS Temperaturecharacteristic:+/-0.5%FS/C Stablity:<0.2%FS/YEAR Worktemperature:-40-125C Insulationresistance:>2KV Pressureerror: <1%F.S.@-20Cto+85C, <1.5%F.S.@85Cto+105C <2.5%F.S@105Cto+125C Temperaturesensor TemperatureRange:-20-200C/F Temperatureoutput:100K/25C(Attachedstatementoftemperatureandresistance) Temperatureprobe:Φ6,SUS304 Connectormaterial:H59 Connector:M16X1.5 Wirecoupling:HirschmannconnectorM27X1.5,fourwire 2.Diagram: 1.Vs+ 2.Vout 3.RT+ 4.GND DiagramDirections: 1.Themarkedwiresshouldbecorrectlyconnected,otherwisetransducerwillbedamaged. 2.1,2and4shouldbeconnectedwithpressureterminal; 3and4connectedwithtemperatureterminal.
